1310 Series 30º Angle Double T Heatshrink Shapes
Two Ordering Options
● 1310 SERIES 30º ANGLE DOUBLE T HEATSHRINK SHAPES
30º Angle Double T-Shape
This special style provides strain relief, sealing and mechanical protection on cable harnesses.

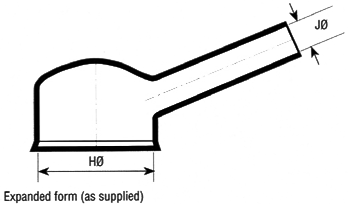

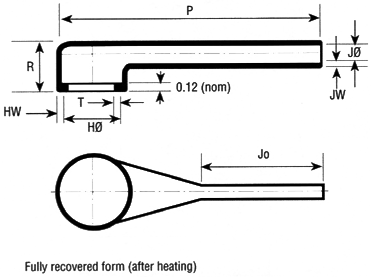

Dimensions apply to all materials unless otherwise indicated and are in inches.
PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.
| Item# | Expanded (Min) H | Expanded (Min) J | P+/-10% | R+/-10% | Material |
|---|---|---|---|---|---|
| 1310-1-J | 1.20 | 1.20 | 3.50 | 2.00 | Flexible Flame Retarded Polyolefin |
| 1310-1-B7 | 1.20 | 1.20 | 3.50 | 2.00 | Semi-Rigid Flame Retarded Polyolefin |
| 1310-1-G | 1.20 | 1.20 | 3.50 | 2.00 | Fluid Resistant Flame Retarded Elastomer |
| 1310-1-H | 1.20 | 1.20 | 3.50 | 2.00 | Flexible Zero-Hal Limited Fire Hazard Material |
| 1310-1-L | 1.20 | 1.20 | 3.50 | 2.00 | Flexible Flame Retarded Fluro-Elastomer |
