  • 1200 SERIES OFF-SET T HEATSHRINK SHAPES (VG STYLE)

            Off-Set T Shapes VG-Style

This style provides strain relief, sealing and mechanical protection on cable harnesses.

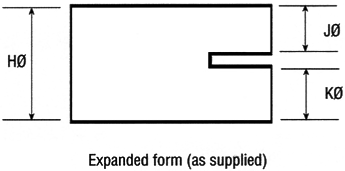

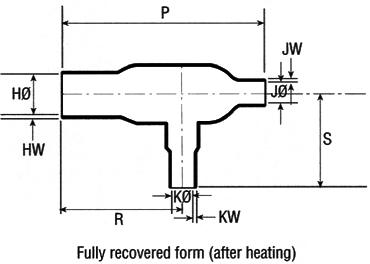

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
1204-1-J0.51 0.26 2.20 1.30 Flexible Flame Retarded Polyolefin
1204-1-B70.51 0.26 2.20 1.30 Semi-Rigid Flame Retarded Polyolefin
1204-1-G0.51 0.26 2.20 1.30 Fluid Resistant Flame Retarded Elastomer
1204-1-H0.51 0.26 2.20 1.30 Flexible Zero-Hal Limited Fire Hazard Material
1204-1-L0.51 0.26 2.20 1.30 Flexible Flame Retarded Fluro-Elastomer
1216-1-J1.30 0.65 3.82 2.13 Flexible Flame Retarded Polyolefin
1216-1-B71.30 0.65 3.82 2.13 Semi-Rigid Flame Retarded Polyolefin
1216-1-G1.30 0.65 3.82 2.13 Fluid Resistant Flame Retarded Elastomer
1216-1-H1.30 0.65 3.82 2.13 Flexible Zero-Hal Limited Fire Hazard Material
1216-1-L1.30 0.65 3.82 2.13 Flexible Flame Retarded Fluro-Elastomer
1226-1-J1.20 0.70 3.20 1.87 Flexible Flame Retarded Polyolefin
1226-1-B71.20 0.70 3.20 1.87 Semi-Rigid Flame Retarded Polyolefin
1226-1-G1.20 0.70 3.20 1.87 Fluid Resistant Flame Retarded Elastomer
1226-1-H1.20 0.70 3.20 1.87 Flexible Zero-Hal Limited Fire Hazard Material
1226-1-L1.20 0.70 3.20 1.87 Flexible Flame Retarded Fluro-Elastomer
1204-1-J0.51 0.26 2.20 1.30 Flexible Flame Retarded Polyolefin
1204-1-B70.51 0.26 2.20 1.30 Semi-Rigid Flame Retarded Polyolefin
1204-1-G0.51 0.26 2.20 1.30 Fluid Resistant Flame Retarded Elastomer
1204-1-H0.51 0.26 2.20 1.30 Flexible Zero-Hal Limited Fire Hazard Material
1204-1-L0.51 0.26 2.20 1.30 Flexible Flame Retarded Fluro-Elastomer
1216-1-J1.30 0.65 3.82 2.13 Flexible Flame Retarded Polyolefin
1216-1-B71.30 0.65 3.82 2.13 Semi-Rigid Flame Retarded Polyolefin
1216-1-G1.30 0.65 3.82 2.13 Fluid Resistant Flame Retarded Elastomer
1216-1-H1.30 0.65 3.82 2.13 Flexible Zero-Hal Limited Fire Hazard Material
1216-1-L1.30 0.65 3.82 2.13 Flexible Flame Retarded Fluro-Elastomer
1226-1-J1.20 0.70 3.20 1.87 Flexible Flame Retarded Polyolefin
1226-1-B71.20 0.70 3.20 1.87 Semi-Rigid Flame Retarded Polyolefin
1226-1-G1.20 0.70 3.20 1.87 Fluid Resistant Flame Retarded Elastomer
1226-1-H1.20 0.70 3.20 1.87 Flexible Zero-Hal Limited Fire Hazard Material
1226-1-L1.20 0.70 3.20 1.87 Flexible Flame Retarded Fluro-Elastomer
1204-1-J0.51 0.26 2.20 1.30 Flexible Flame Retarded Polyolefin
1204-1-B70.51 0.26 2.20 1.30 Semi-Rigid Flame Retarded Polyolefin
1204-1-G0.51 0.26 2.20 1.30 Fluid Resistant Flame Retarded Elastomer
1204-1-H0.51 0.26 2.20 1.30 Flexible Zero-Hal Limited Fire Hazard Material
1204-1-L0.51 0.26 2.20 1.30 Flexible Flame Retarded Fluro-Elastomer
1216-1-J1.30 0.65 3.82 2.13 Flexible Flame Retarded Polyolefin
1216-1-B71.30 0.65 3.82 2.13 Semi-Rigid Flame Retarded Polyolefin
1216-1-G1.30 0.65 3.82 2.13 Fluid Resistant Flame Retarded Elastomer
1216-1-H1.30 0.65 3.82 2.13 Flexible Zero-Hal Limited Fire Hazard Material
1230-1-G0.78 0.40 3.54 1.77 Fluid Resistant Flame Retarded Elastomer
1230-1-H0.78 0.40 3.54 1.77 Flexible Zero-Hal Limited Fire Hazard Material
1230-1-L0.78 0.40 3.54 1.77 Flexible Flame Retarded Fluro-Elastomer
