1300 Series 45º Angle T Heatshrink Shapes (VG Style)

  • 1300 SERIES 45º ANGLE T HEATSHRINK SHAPES (VG STYLE)

            45º Angle T-Shapes VG-Style

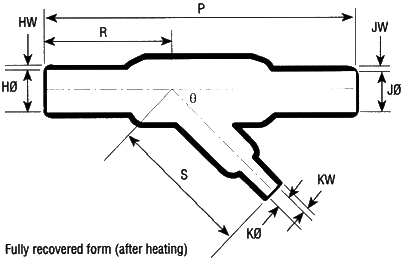

This style provides strain relief, sealing and mechanical protection on cable harnesses.

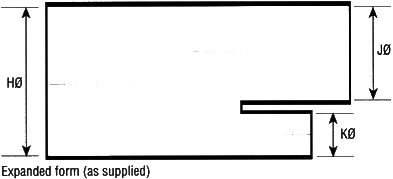

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) KP+/-10%R+/-10%Material
1301-1-J0.51 0.28 1.97 0.91 Flexible Flame Retarded Polyolefin
1301-1-B70.51 0.28 1.97 0.91 Semi-Rigid Flame Retarded Polyolefin
1301-1-G0.51 0.28 1.97 0.91 Fluid Resistant Flame Retarded Elastomer
1301-1-H0.51 0.28 1.97 0.91 Flexible Zero-Hal Limited Fire Hazard Material
1301-1-L0.51 0.28 1.97 0.91 Flexible Flame Retarded Fluro-Elastomer
1302-1-J1.06 0.28 3.62 1.61 Flexible Flame Retarded Polyolefin
1302-1-B71.06 0.28 3.62 1.61 Semi-Rigid Flame Retarded Polyolefin
1302-1-G1.06 0.28 3.62 1.61 Fluid Resistant Flame Retarded Elastomer
1302-1-H1.06 0.28 3.62 1.61 Flexible Zero-Hal Limited Fire Hazard Material
1302-1-L1.06 0.28 3.62 1.61 Flexible Flame Retarded Fluro-Elastomer
1303-1-J1.06 0.51 5.71 2.76 Flexible Flame Retarded Polyolefin
1303-1-B71.06 0.51 5.71 2.76 Semi-Rigid Flame Retarded Polyolefin
1303-1-G1.06 0.51 5.71 2.76 Fluid Resistant Flame Retarded Elastomer
1303-1-H1.06 0.51 5.71 2.76 Flexible Zero-Hal Limited Fire Hazard Material
1303-1-L1.06 0.51 5.71 2.76 Flexible Flame Retarded Fluro-Elastomer
1311-1-J1.20 0.80 3.25 1.26 Flexible Flame Retarded Polyolefin
1311-1-B71.20 0.80 3.25 1.26 Semi-Rigid Flame Retarded Polyolefin
1311-1-G1.20 0.80 3.25 1.26 Fluid Resistant Flame Retarded Elastomer
1311-1-H1.20 0.80 3.25 1.26 Flexible Zero-Hal Limited Fire Hazard Material
1311-1-L1.20 0.80 3.25 1.26 Flexible Flame Retarded Fluro-Elastomer
1306-1-J0.51 0.26 1.77 0.91 Flexible Flame Retarded Polyolefin
1306-1-B70.51 0.26 1.77 0.91 Semi-Rigid Flame Retarded Polyolefin
1306-1-G0.51 0.26 1.77 0.91 Fluid Resistant Flame Retarded Elastomer
1306-1-H0.51 0.26 1.77 0.91 Flexible Zero-Hal Limited Fire Hazard Material
1306-1-L0.51 0.26 1.77 0.91 Flexible Flame Retarded Fluro-Elastomer
1307-1-J1.06 0.51 3.54 1.65 Flexible Flame Retarded Polyolefin
1307-1-B71.06 0.51 3.54 1.65 Semi-Rigid Flame Retarded Polyolefin
1307-1-G1.06 0.51 3.54 1.65 Fluid Resistant Flame Retarded Elastomer
1307-1-H1.06 0.51 3.54 1.65 Flexible Zero-Hal Limited Fire Hazard Material
1307-1-L1.06 0.51 3.54 1.65 Flexible Flame Retarded Fluro-Elastomer
