1200 Series T Heatshrink Shapes (VG Style)

  • 1200 SERIES T HEATSHRINK SHAPES (VG STYLE)

T Shapes VG-Style

This style provides strain relief, sealing and mechanical protection on cable harnesses.

VG shapes according to T09 add ‘P’ after Hellermann part number.

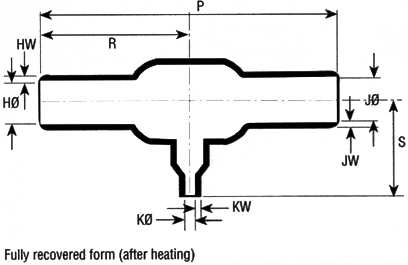

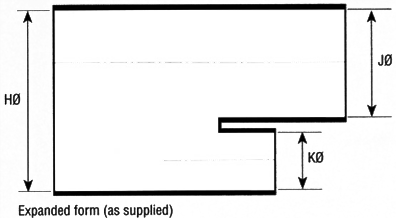

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HRecovered (Max) HP+/-10%R+/-10%Material
1206-1-J 0.26 0.12 1.17 0.58 Flexible Flame Retarded Polyolefin
1206-1-B7 0.26 0.12 1.17 0.58 Semi-Rigid Flame Retarded Polyolefin
1206-1-G 0.26 0.12 1.17 0.58 Fluid Resistant Flame Retarded Elastomer
1206-1-H 0.26 0.12 1.17 0.58 Flexible Zero-Hal Limited Fire Hazard Material
1206-1-L 0.26 0.12 1.17 0.58 Flexible Flame Retarded Fluro-Elastomer
1203-1-J 0.52 0.24 2.05 1.02 Flexible Flame Retarded Polyolefin
1203-1-B7 0.52 0.24 2.05 1.02 Semi-Rigid Flame Retarded Polyolefin
1203-1-G 0.52 0.24 2.05 1.02 Fluid Resistant Flame Retarded Elastomer
1203-1-H 0.52 0.24 2.05 1.02 Flexible Zero-Hal Limited Fire Hazard Material
1203-1-L 0.52 0.24 2.05 1.02 Flexible Flame Retarded Fluro-Elastomer
1202-1-J 0.52 0.24 2.31 1.15 Flexible Flame Retarded Polyolefin
1202-1-B7 0.52 0.24 2.31 1.15 Semi-Rigid Flame Retarded Polyolefin
1202-1-G 0.52 0.24 2.31 1.15 Fluid Resistant Flame Retarded Elastomer
1202-1-H 0.52 0.24 2.31 1.15 Flexible Zero-Hal Limited Fire Hazard Material
1202-1-L 0.52 0.24 2.31 1.15 Flexible Flame Retarded Fluro-Elastomer
1205-1-J 0.70 0.35 2.00 1.00 Flexible Flame Retarded Polyolefin
1205-1-B7 0.70 0.35 2.00 1.00 Semi-Rigid Flame Retarded Polyolefin
1205-1-G 0.70 0.35 2.00 1.00 Fluid Resistant Flame Retarded Elastomer
1205-1-H 0.70 0.35 2.00 1.00 Flexible Zero-Hal Limited Fire Hazard Material
1205-1-L 0.70 0.35 2.00 1.00 Flexible Flame Retarded Fluro-Elastomer
1201-1-J 0.70 0.35 1.87 0.93 Flexible Flame Retarded Polyolefin
1201-1-B7 0.70 0.35 1.87 0.93 Semi-Rigid Flame Retarded Polyolefin
1201-1-G 0.70 0.35 1.87 0.93 Fluid Resistant Flame Retarded Elastomer
1201-1-H 0.70 0.35 1.87 0.93 Flexible Zero-Hal Limited Fire Hazard Material
1201-1-L 0.70 0.35 1.87 0.93 Flexible Flame Retarded Fluro-Elastomer
1206-1-J 0.26 0.12 1.17 0.58 Flexible Flame Retarded Polyolefin
1206-1-B7 0.26 0.12 1.17 0.58 Semi-Rigid Flame Retarded Polyolefin
1208-1-J 1.06 0.49 4.25 2.13 Flexible Flame Retarded Polyolefin
1208-1-B7 1.06 0.49 4.25 2.13 Semi-Rigid Flame Retarded Polyolefin
1208-1-G 1.06 0.49 4.25 2.13 Fluid Resistant Flame Retarded Elastomer
1208-1-H 1.06 0.49 4.25 2.13 Flexible Zero-Hal Limited Fire Hazard Material
1208-1-L 1.06 0.49 4.25 2.13 Flexible Flame Retarded Fluro-Elastomer
1207-1-J 1.06 0.49 4.73 2.20 Flexible Flame Retarded Polyolefin
1207-1-B7 1.06 0.49 4.73 2.20 Semi-Rigid Flame Retarded Polyolefin
1207-1-G 1.06 0.49 4.73 2.20 Fluid Resistant Flame Retarded Elastomer
1207-1-H 1.06 0.49 4.73 2.20 Flexible Zero-Hal Limited Fire Hazard Material
1207-1-L 1.06 0.49 4.73 2.20 Flexible Flame Retarded Fluro-Elastomer
1230-1-J 0.78 0.40 3.54 1.77 Flexible Flame Retarded Polyolefin
1230-1-B7 0.78 0.40 3.54 1.77 Semi-Rigid Flame Retarded Polyolefin
1230-1-G 0.78 0.40 3.54 1.77 Fluid Resistant Flame Retarded Elastomer
1230-1-H 0.78 0.40 3.54 1.77 Flexible Zero-Hal Limited Fire Hazard Material
1230-1-L 0.78 0.40 3.54 1.77 Flexible Flame Retarded Fluro-Elastomer
