Specialty Nomex Tapes
Two Ordering Options
Description:

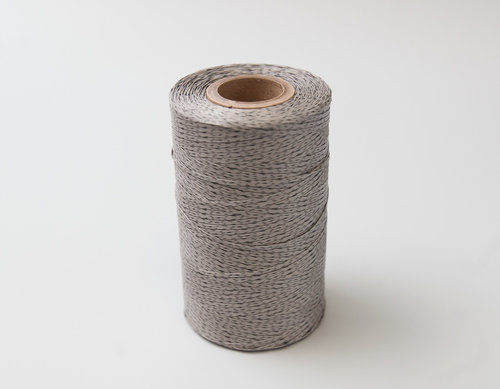

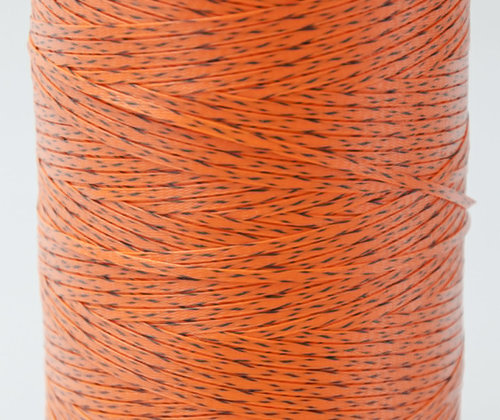

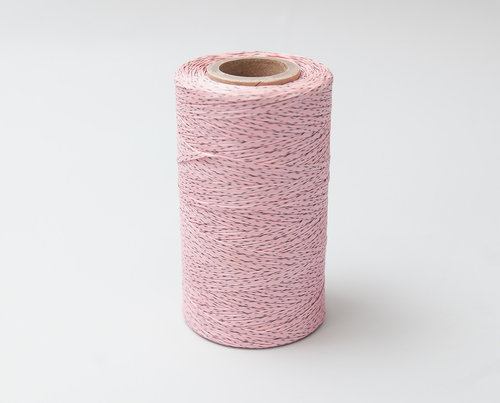

Flat braided tape manufactured from continuous filament Nomex® yarn. This tape is impregnated with a specially formulated synthetic elastomer finish which improves knot holding and tying characteristics.
Originally designed for the Eurofighter Project.
502-3/3 Blue Specification: JN1127-12B Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Yellow Specification: JN1127-12C Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Green Specification: JN1127-12D Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 White Specification: JN1127-12E Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Brown Specification: JN1127-12F Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Violet Specification: JN1127-12G Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Black Specification: JN1127-12H Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Pink Specification: JN1127-12J Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Neutral Specification: JN1127-12K Breaking Strength lbs min: 50 Spool Size: 250yd
__________________________________________________
502-3/3 Orange Specification: JN1127-12L Breaking Strength lbs min: 50 Spool Size: 250yd
Flat braided tape manufactured from continuous filament Nomex® yarn. This tape is impregnated with a specially formulated synthetic elastomer finish which improves knot holding and tying characteristics.
Originally designed for the Eurofighter Project.
503-3/3 Red Specification: JN1127-08A Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Blue Specification: JN1127-08B Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Yellow Specification: JN1127-08C Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Green Specification: JN1127-08D Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 White Specification: JN1127-08E Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Brown Specification: JN1127-08F Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Violet Specification: JN1127-08G Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Black Specification: JN1127-08H Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Pink Specification: JN1127-08J Breaking Strength lbs min: 35Spool Size: 500yd
_________________________________________________
503-3/3 Neutral Specification: JN1127-08K Breaking Strength lbs min: 35Spool Size: 500yd
__________________________________________________
503-3/3 Orange Specification: JN1127-08L Breaking Strength lbs min: 35Spool Size: 500yd
Nylon Lacing Tape A-A-52080 (Formerly MIL-T-43435 Type I)
Nomex Lacing Tape A-A-52084 (Formerly MIL-T-43435 Type V)
Nylon Cord MIL-DTL-713 Type P (Only)
Polyester Tape A-A-52081 (Formerly MIL-T-43435 Type II)
Teflon Tape A-A52082 (Formerly Mil-T-43435 Type III)
Nomex Braiding Yarn MIL-PRF-572 Type PAA Form Y
Glass tape A-A-52083 (Formerly MIL-T-43435 Type IV)
Specialty Nomex Tapes-Rolls Royce ESW 1900
