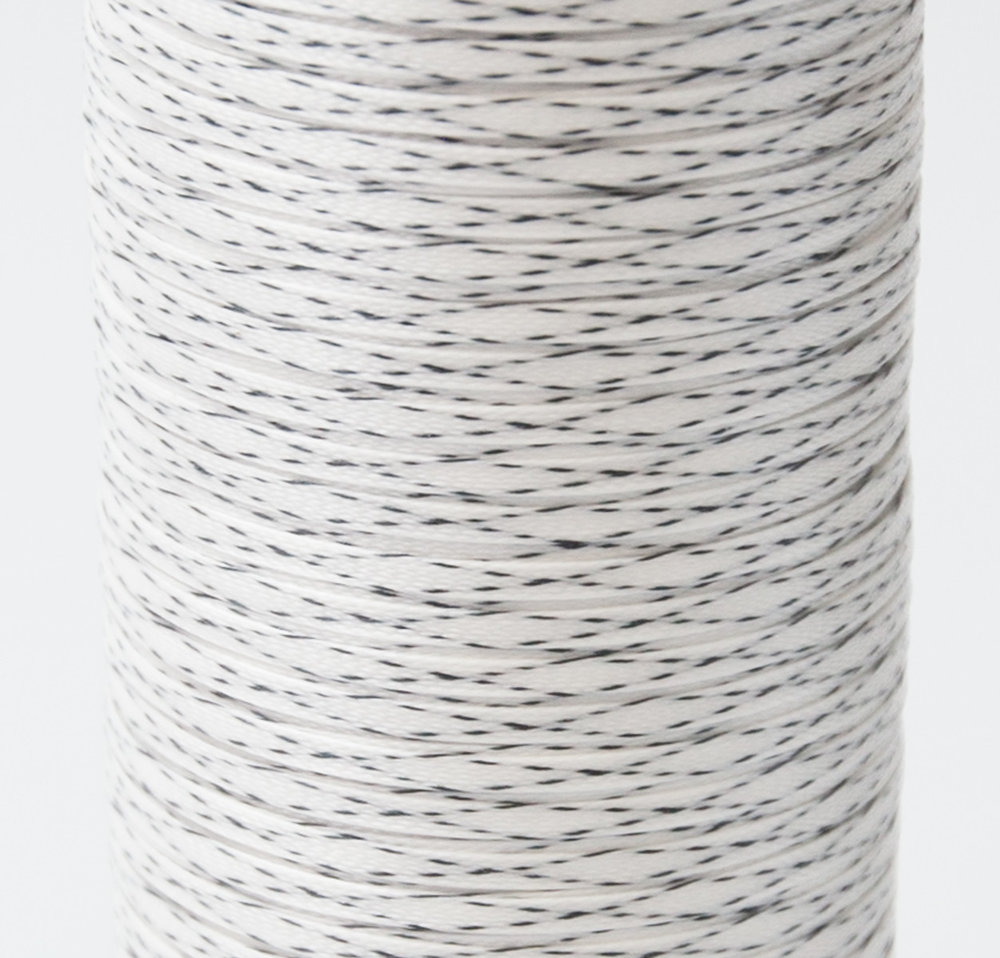

Nomex Lacing Tape A-A-52084 (Formerly Mil-T-43435 Type V)

Description:

Flat braid manufactured from continuous filament Nomex® yarn.  Available with a variety of finishes.

Note: Our Nomex lacing tape is made with a tracer unless requested otherwise.

Standard Colors: Natural (with or without tracers), other colors available – minimum dye lots

Temperature Range: -100°F to 500°F(-73°C to 260°C)

Mil Spec Size: 1 Width .180 – .220″ Thickness .013 – .019″   Spool Size: 250 yd

Mil Spec A-A-52084-A-1   501-1 No Finish A

Mil Spec A-A-52084-B-1   501-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52084-C-1   501-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52084-E-1   501-5 Vinyl E

Mil Spec A-A-52084-F-1   501-6 Silicone Resin F

Mil Spec A-A-52084-G-1  501-7 Liquid Resin G

Mil Spec A-A-52084-C-1  501-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 2 Width .099 – .121″ Thickness .011 – .017″   Spool Size: 250 yd

Mil Spec A-A-52084-A-2 502-1 No Finish A

Mil Spec A-A-52084-B-2 502-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52084-C-2 502-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52084-E-2  502-5 Vinyl E

Mil Spec A-A-52084-F-2  502-6 Silicone Resin F

Mil Spec A-A-52084-G-2 502-7 Liquid Nylon G

Mil Spec A-A-52084-C-2502-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 3 Width .068 – .083″ Thickness .009 – .015″   Spool Size: 500 yd

Mil Spec A-A-52084-A-3 503-1 No Finish A

Mil Spec A-A-52084-B-3 503-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52084-C-3 503-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52084-E-3 503-5 Vinyl E

Mil Spec A-A-52084-F-3 503-6 Silicone Resin F

Mil Spec A-A-52084-G-3 503-7 Liquid Nylon G

Mil Spec A-A-52084-C-3 503-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 4 Width .050 – .061″ Thickness .007 – .013″   Spool Size: 500 yd

Mil Spec A-A-52084-A-4 504-1 No Finish A

Mil Spec A-A-52084-B-4 504-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52084-C-4 504-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52084-E-4 504-5 Vinyl E

Mil Spec A-A-52084-F-4 504-6 Silicone Resin F

Mil Spec A-A-52084-G-4 504-7 Liquid Nylon G

Mil Spec A-A-52084-C-4 504-8 Self Extinguishing C
