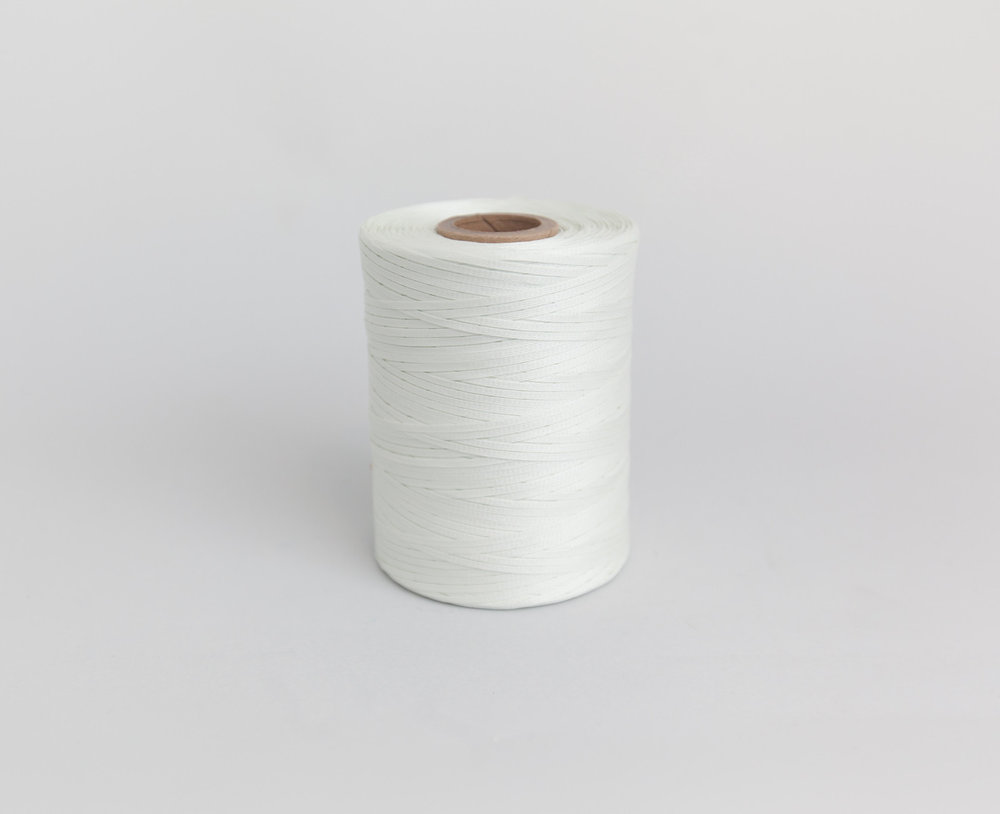

Glass tape A-A-52083 (Formerly MIL-T-43435 Type IV)

Description:

Flat braid manufactured from continuous filament Glass yarn coated with Teflon before braiding.  Available with a variety of finishes.

Standard Colors: Natural

Temperature Range: Glass maintains strength and is stable at 800°F (427°C)

Mil Spec Size: 1 Width .203 – .248″ Thickness .013 – .019″   Spool Size: 250 yd

Mil Spec A-A-52083-B-1   401-2 Microcrystalline Wax B

Mil Spec A-A-52083-C-1   401-3 Synthetic Elastomer C

Mil Spec A-A-52083-D-1   401-4 Teflon D

Mil Spec A-A-52083-E-1   401-5 Vinyl E

Mil Spec A-A-52083-F-1   401-6 Silicone Resin F

__________________________________________________

Mil Spec Size: 2 Width .077 – .094″ Thickness .013 – .019″   Spool Size: 250 yd

Mil Spec A-A-52083-C-2  402-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52083-D-2         402-4 Teflon D

Mil Spec A-A-52083-E-2         402-5 Vinyl E

Mil Spec A-A-52083-F-2         402-6 Silicone Resin F

__________________________________________________

Mil Spec Size: 3 Width .099 – .121″ Thickness .012 – .018″   Spool Size: 500 yd

Mil Spec A-A-52083-C-3  403-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52083-D-3  403-4 Teflon D

Mil Spec A-A-52083-E-3   403-5 Vinyl E

Mil Spec A-A-52083-F-3   403-6 Silicone Resin F

__________________________________________________

Mil Spec Size: 4 Width .054 – .066″ Thickness .013 – .019″   Spool Size: 500 yd

Mil Spec A-A-52083-C-4  404-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52083-D-4  404-4 Teflon D

Mil Spec A-A-52083-E-4   404-5 Vinyl E

Mil Spec A-A-52083-F-4   404-6 Silicone Resin F

__________________________________________________

Mil Spec Size: 5 Width .045 – .055″ Thickness .013 – .019″   Spool Size: 500 yd

Mil Spec A-A-52083-C-5   405-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52083-D-5   405-4 Teflon D

Mil Spec A-A-52083-E-5   405-5 Vinyl E

Mil Spec A-A-52083-F-5   405-6 Silicone Resin F
