  • LOCATING BRUSH HEATSHRINK SHAPES

Locating Brushes

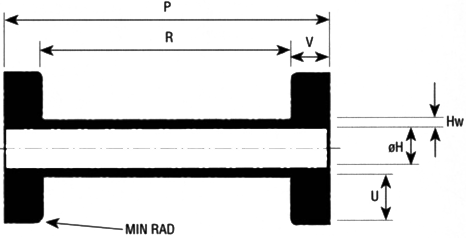

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HRecovered (Max) HR+/-10%U+/-10%Material
1764-1-J0.50 0.12 0.95 0.180 Flexible Flame Retarded Polyolefin
1764-1-B70.50 0.12 0.95 0.180 Semi-Rigid Flame Retarded Polyolefin
1764-1-G0.50 0.12 0.95 0.180 Fluid Resistant Flame Retarded Elastomer
1764-1-H0.50 0.12 0.95 0.180 Flexible Zero-Hal Limited Fire Hazard Material
1764-1-L0.50 0.12 0.95 0.180 Flexible Flame Retarded Fluro-Elastomer
1793-3-J1.26 0.37 1.00 0.120 Flexible Flame Retarded Polyolefin
1793-3-B71.26 0.37 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1793-3-G1.26 0.37 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1793-3-H1.26 0.37 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1793-3-L1.26 0.37 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1794-3-J1.42 0.71 1.00 0.120 Flexible Flame Retarded Polyolefin
1794-3-B71.42 0.71 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1794-3-G1.42 0.71 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1794-3-H1.42 0.71 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1794-3-L1.42 0.71 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1795-3-J1.58 0.50 1.00 0.120 Flexible Flame Retarded Polyolefin
1795-3-B71.58 0.50 1.00 0.120 Semi-Rigid Flame Retarded Polyolefin
1795-3-G1.58 0.50 1.00 0.120 Fluid Resistant Flame Retarded Elastomer
1795-3-H1.58 0.50 1.00 0.120 Flexible Zero-Hal Limited Fire Hazard Material
1795-3-L1.58 0.50 1.00 0.120 Flexible Flame Retarded Fluro-Elastomer
1796-3-J0.86 0.25 0.95 0.080 Flexible Flame Retarded Polyolefin
1796-3-B70.86 0.25 0.95 0.080 Semi-Rigid Flame Retarded Polyolefin
1822-2-B70.47 0.23 0.95 0.080 Semi-Rigid Flame Retarded Polyolefin
1822-2-G0.47 0.23 0.95 0.080 Fluid Resistant Flame Retarded Elastomer
1822-2-H0.47 0.23 0.95 0.080 Flexible Zero-Hal Limited Fire Hazard Material
1822-2-L0.47 0.23 0.95 0.080 Flexible Flame Retarded Fluro-Elastomer
1823-3-J0.63 0.30 0.95 0.098 Flexible Flame Retarded Polyolefin
1823-3-B70.63 0.30 0.95 0.098 Semi-Rigid Flame Retarded Polyolefin
1823-3-G0.63 0.30 0.95 0.098 Fluid Resistant Flame Retarded Elastomer
1823-3-H0.63 0.30 0.95 0.098 Flexible Zero-Hal Limited Fire Hazard Material
1823-3-L0.63 0.30 0.95 0.098 Flexible Flame Retarded Fluro-Elastomer
