  • 1400 SERIES 90º ANGLE ELBOW HEATSHRINK SHAPES

90º Angle Elbow Shapes

This style provides strain relief and mechanical protection.

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

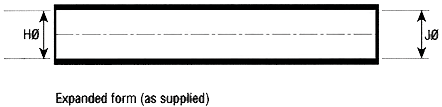

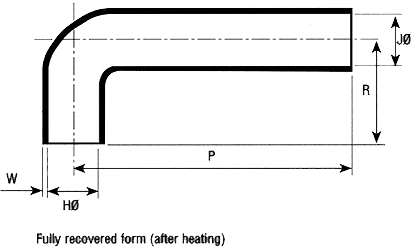

Item#Expanded (Min) HExpanded (Min) JRecovered (Max) HRecovered (Max) JMaterial
1401-1-J1.25 1.25 0.62 0.62 Flexible Flame Retarded Polyolefin
1401-1-B71.25 1.25 0.62 0.62 Semi-Rigid Flame Retarded Polyolefin
1401-1-G1.25 1.25 0.62 0.62 Fluid Resistant Flame Retarded Elastomer
1401-1-H1.25 1.25 0.62 0.62 Flexible Zero-Hal Limited Fire Hazard Material
1401-1-L1.25 1.25 0.62 0.62 Flexible Flame Retarded Fluro-Elastomer
1401-2-J1.50 1.50 0.62 0.62 Flexible Flame Retarded Polyolefin
1401-2-B71.50 1.50 0.62 0.62 Semi-Rigid Flame Retarded Polyolefin
1401-2-G1.50 1.50 0.62 0.62 Fluid Resistant Flame Retarded Elastomer
1401-2-H1.50 1.50 0.62 0.62 Flexible Zero-Hal Limited Fire Hazard Material
1401-2-L1.50 1.50 0.62 0.62 Flexible Flame Retarded Fluro-Elastomer
1403-1-J0.62 0.62 0.31 0.31 Flexible Flame Retarded Polyolefin
1403-1-B70.62 0.62 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1403-1-G0.62 0.62 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1403-1-H0.62 0.62 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1403-1-L0.62 0.62 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1405-1-J0.98 0.98 0.31 0.31 Flexible Flame Retarded Polyolefin
1405-1-B70.98 0.98 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1405-1-G0.98 0.98 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1405-1-H0.98 0.98 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1405-1-L0.98 0.98 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1406-1-J0.79 0.79 0.31 0.31 Flexible Flame Retarded Polyolefin
1406-1-B70.79 0.79 0.31 0.31 Semi-Rigid Flame Retarded Polyolefin
1406-1-G0.79 0.79 0.31 0.31 Fluid Resistant Flame Retarded Elastomer
1406-1-H0.79 0.79 0.31 0.31 Flexible Zero-Hal Limited Fire Hazard Material
1406-1-L0.79 0.79 0.31 0.31 Flexible Flame Retarded Fluro-Elastomer
1408-2-J0.75 0.75 0.35 0.35 Flexible Flame Retarded Polyolefin
1408-2-B70.75 0.75 0.35 0.35 Semi-Rigid Flame Retarded Polyolefin
1408-2-G0.75 0.75 0.35 0.35 Fluid Resistant Flame Retarded Elastomer
1408-2-H0.75 0.75 0.35 0.35 Flexible Zero-Hal Limited Fire Hazard Material
1408-2-L0.75 0.75 0.35 0.35 Flexible Flame Retarded Fluro-Elastomer
