400 Series 4-way Outlet Heatshrink Shapes (VG Style)

  • 400 SERIES 4-WAY OUTLET HEATSHRINK SHAPES (VG STYLE)

4-Way Outlet Shapes VG-Style

This style provides cable sealing strain relief and mechanical protection.

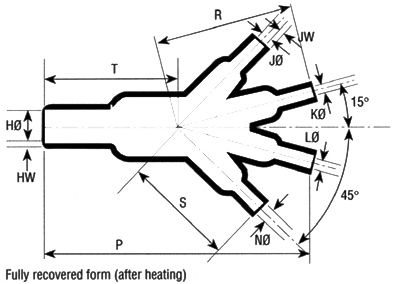

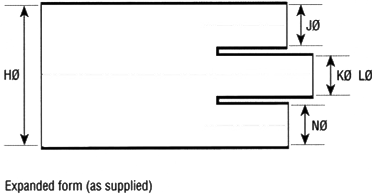

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%T+/-10%Material
411-1-J0.75 0.37 2.80 1.42 Flexible Flame Retarded Polyolefin
411-1-B70.75 0.37 2.80 1.42 Semi-Rigid Flame Retarded Polyolefin
411-1-G0.75 0.37 2.80 1.42 Fluid Resistant Flame Retarded Elastomer
411-1-H0.75 0.37 2.80 1.42 Flexible Zero-Hal Limited Fire Hazard Material
411-1-L0.75 0.37 2.80 1.42 Flexible Flame Retarded Fluro-Elastomer
403-1-J1.06 0.51 4.02 1.93 Flexible Flame Retarded Polyolefin
403-1-B71.06 0.51 4.02 1.93 Semi-Rigid Flame Retarded Polyolefin
403-1-G1.06 0.51 4.02 1.93 Fluid Resistant Flame Retarded Elastomer
403-1-H1.06 0.51 4.02 1.93 Flexible Zero-Hal Limited Fire Hazard Material
403-1-L1.06 0.51 4.02 1.93 Flexible Flame Retarded Fluro-Elastomer
413-1-J1.52 0.75 5.91 2.95 Flexible Flame Retarded Polyolefin
413-1-B71.52 0.75 5.91 2.95 Semi-Rigid Flame Retarded Polyolefin
413-1-G1.52 0.75 5.91 2.95 Fluid Resistant Flame Retarded Elastomer
413-1-H1.52 0.75 5.91 2.95 Flexible Zero-Hal Limited Fire Hazard Material
413-1-L1.52 0.75 5.91 2.95 Flexible Flame Retarded Fluro-Elastomer
323-1-G4.72 2.36 11.81 3.54 Fluid Resistant Flame Retarded Elastomer
323-1-H4.72 2.36 11.81 3.54 Flexible Zero-Hal Limited Fire Hazard Material
323-1-L4.72 2.36 11.81 3.54 Flexible Flame Retarded Fluro-Elastomer
