400 Series 4-way Outlet Heatshrink Shapes (In Line)

  • 400 SERIES 4-WAY OUTLET HEATSHRINK SHAPES (IN LINE)

4-Way Outlet Shapes In-Line

This style provides cable sealing strain relief and mechanical protection. Ideal for power and signal applications.

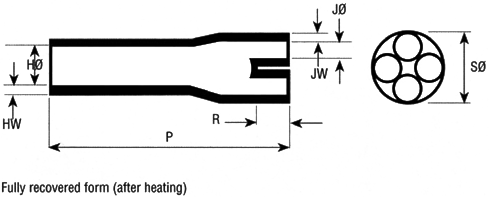

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
442-1-J1.10 0.35 3.07 0.67 Flexible Flame Retarded Polyolefin
442-1-B71.10 0.35 3.07 0.67 Semi-Rigid Flame Retarded Polyolefin
442-1-G1.10 0.35 3.07 0.67 Fluid Resistant Flame Retarded Elastomer
442-1-H1.10 0.35 3.07 0.67 Flexible Zero-Hal Limited Fire Hazard Material
442-1-L1.10 0.35 3.07 0.67 Flexible Flame Retarded Fluro-Elastomer
434-2-J0.98 0.28 3.07 0.85 Flexible Flame Retarded Polyolefin
434-2-B70.98 0.28 3.07 0.85 Semi-Rigid Flame Retarded Polyolefin
434-2-G0.98 0.28 3.07 0.85 Fluid Resistant Flame Retarded Elastomer
434-2-H0.98 0.28 3.07 0.85 Flexible Zero-Hal Limited Fire Hazard Material
434-2-L0.98 0.28 3.07 0.85 Flexible Flame Retarded Fluro-Elastomer
443-1-J1.38 0.59 4.72 1.02 Flexible Flame Retarded Polyolefin
443-1-B71.38 0.59 4.72 1.02 Semi-Rigid Flame Retarded Polyolefin
443-1-G1.38 0.59 4.72 1.02 Fluid Resistant Flame Retarded Elastomer
443-1-H1.38 0.59 4.72 1.02 Flexible Zero-Hal Limited Fire Hazard Material
443-1-L1.38 0.59 4.72 1.02 Flexible Flame Retarded Fluro-Elastomer
408-2-J1.38 0.59 3.74 0.94 Flexible Flame Retarded Polyolefin
408-2-B71.38 0.59 3.74 0.94 Semi-Rigid Flame Retarded Polyolefin
408-2-G1.38 0.59 3.74 0.94 Fluid Resistant Flame Retarded Elastomer
408-2-H1.38 0.59 3.74 0.94 Flexible Zero-Hal Limited Fire Hazard Material
408-2-L1.38 0.59 3.74 0.94 Flexible Flame Retarded Fluro-Elastomer
435-2-J1.26 0.51 3.68 1.12 Flexible Flame Retarded Polyolefin
435-2-B71.26 0.51 3.68 1.12 Semi-Rigid Flame Retarded Polyolefin
435-2-G1.26 0.51 3.68 1.12 Fluid Resistant Flame Retarded Elastomer
435-2-H1.26 0.51 3.68 1.12 Flexible Zero-Hal Limited Fire Hazard Material
435-2-L1.26 0.51 3.68 1.12 Flexible Flame Retarded Fluro-Elastomer
409-2-J1.87 0.85 6.50 1.50 Flexible Flame Retarded Polyolefin
409-2-B71.87 0.85 6.50 1.50 Semi-Rigid Flame Retarded Polyolefin
409-2-G1.87 0.85 6.50 1.50 Fluid Resistant Flame Retarded Elastomer
409-2-H1.87 0.85 6.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
409-2-L1.87 0.85 6.50 1.50 Flexible Flame Retarded Fluro-Elastomer
418-4-J2.36 1.18 7.95 1.50 Flexible Flame Retarded Polyolefin
418-4-B72.36 1.18 7.95 1.50 Semi-Rigid Flame Retarded Polyolefin
418-4-G2.36 1.18 7.95 1.50 Fluid Resistant Flame Retarded Elastomer
418-4-H2.36 1.18 7.95 1.50 Flexible Zero-Hal Limited Fire Hazard Material
418-4-L2.36 1.18 7.95 1.50 Flexible Flame Retarded Fluro-Elastomer
436-2-J1.77 0.79 3.90 1.34 Flexible Flame Retarded Polyolefin
436-2-B71.77 0.79 3.90 1.34 Semi-Rigid Flame Retarded Polyolefin
436-2-G1.77 0.79 3.90 1.34 Fluid Resistant Flame Retarded Elastomer
436-2-H1.77 0.79 3.90 1.34 Flexible Zero-Hal Limited Fire Hazard Material
436-2-L1.77 0.79 3.90 1.34 Flexible Flame Retarded Fluro-Elastomer
437-2-J2.36 1.00 9.45 1.89 Flexible Flame Retarded Polyolefin
437-2-B72.36 1.00 9.45 1.89 Semi-Rigid Flame Retarded Polyolefin
437-2-G2.36 1.00 9.45 1.89 Fluid Resistant Flame Retarded Elastomer
437-2-H2.36 1.00 9.45 1.89 Flexible Zero-Hal Limited Fire Hazard Material
437-2-L2.36 1.00 9.45 1.89 Flexible Flame Retarded Fluro-Elastomer
409-4-J2.36 1.18 6.50 1.50 Flexible Flame Retarded Polyolefin
409-4-B72.36 1.18 6.50 1.50 Semi-Rigid Flame Retarded Polyolefin
409-4-G2.36 1.18 6.50 1.50 Fluid Resistant Flame Retarded Elastomer
409-4-H2.36 1.18 6.50 1.50 Flexible Zero-Hal Limited Fire Hazard Material
409-4-L2.36 1.18 6.50 1.50 Flexible Flame Retarded Fluro-Elastomer
438-2-J2.64 1.20 5.57 1.67 Flexible Flame Retarded Polyolefin
438-2-B72.64 1.20 5.57 1.67 Semi-Rigid Flame Retarded Polyolefin
438-2-G2.64 1.20 5.57 1.67 Fluid Resistant Flame Retarded Elastomer
438-2-H2.64 1.20 5.57 1.67 Flexible Zero-Hal Limited Fire Hazard Material
438-2-L2.64 1.20 5.57 1.67 Flexible Flame Retarded Fluro-Elastomer
444-1-J3.10 1.50 9.45 2.17 Flexible Flame Retarded Polyolefin
444-1-B73.10 1.50 9.45 2.17 Semi-Rigid Flame Retarded Polyolefin
444-1-G3.10 1.50 9.45 2.17 Fluid Resistant Flame Retarded Elastomer
444-1-H3.10 1.50 9.45 2.17 Flexible Zero-Hal Limited Fire Hazard Material
444-1-L3.10 1.50 9.45 2.17 Flexible Flame Retarded Fluro-Elastomer
439-2-J5.25 1.35 10.02 3.35 Flexible Flame Retarded Polyolefin
439-2-B75.25 1.35 10.02 3.35 Semi-Rigid Flame Retarded Polyolefin
439-2-G5.25 1.35 10.02 3.35 Fluid Resistant Flame Retarded Elastomer
439-2-H5.25 1.35 10.02 3.35 Flexible Zero-Hal Limited Fire Hazard Material
439-2-L5.25 1.35 10.02 3.35 Flexible Flame Retarded Fluro-Elastomer
