333F322 to 385 Right Angle Heatshrink Shapes with Adapter Lip

Two Ordering Options

Search Product Wizard
Call to Order – (800) 633-7210
  • 333F322 TO 385 RIGHT ANGLE HEATSHRINK SHAPES WITH ADAPTER LIP

            Right Angle, Boot 90º, Low Profile with Adapter Lip

This style provides connector cable strain relief in applications with partially loaded connectors resulting in small cable diameter requiring a high shrink ratio.

All dimensions are in inches. All angles are in degrees.

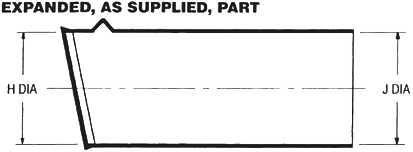

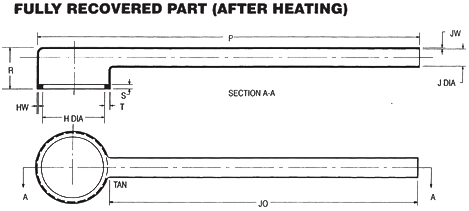

Dimensions in table: X = Expanded (minimum), R = Recovered (maximum)

Larger expansions available on request for -6 material.

Item#H Dia. (Min X)H Dia. (Max R)J Dia. (Min X)J Dia. (Max R)Material
333F322-60.94 0.39 0.68 0.26 Flexible Flame Retardant Polyolefin
333F322-80.94 0.39 0.68 0.26 Viton-Polyester Polymer Blend
333F322-90.94 0.39 0.68 0.26 Modified Elastomer Blend
333F332-61.07 0.52 0.82 0.29 Flexible Flame Retardant Polyolefin
333F332-81.07 0.52 0.82 0.29 Viton-Polyester Polymer Blend
333F332-91.07 0.52 0.82 0.29 Modified Elastomer Blend
333F343-61.22 0.73 0.96 0.33 Flexible Flame Retardant Polyolefin
333F343-81.22 0.73 0.96 0.33 Viton-Polyester Polymer Blend
333F343-91.22 0.73 0.96 0.33 Modified Elastomer Blend
333F353-61.40 1.10 1.24 0.43 Flexible Flame Retardant Polyolefin
333F353-81.40 1.10 1.24 0.43 Viton-Polyester Polymer Blend
333F353-91.40 1.10 1.24 0.43 Modified Elastomer Blend
333F364-61.53 1.10 1.24 0.43 Flexible Flame Retardant Polyolefin
333F364-81.53 1.10 1.24 0.43 Viton-Polyester Polymer Blend
333F364-91.53 1.10 1.24 0.43 Modified Elastomer Blend
333F374-61.78 1.34 1.51 0.48 Flexible Flame Retardant Polyolefin
333F374-81.78 1.34 1.51 0.48 Viton-Polyester Polymer Blend
333F374-91.78 1.34 1.51 0.48 Modified Elastomer Blend
333F385-62.03 1.62 1.75 0.56 Flexible Flame Retardant Polyolefin
333F385-82.03 1.62 1.75 0.56 Viton-Polyester Polymer Blend
333F385-92.03 1.62 1.75 0.56 Modified Elastomer Blend
1819-42-G60 º 1.69 1.69 2.17 Fluid Resistant Flame Retarded Elastomer
1819-42-H60 º 1.69 1.69 2.17 Flexible Zero-Hal Limited Fire Hazard Material
1819-42-L 60 º 1.69 1.69 2.17 Flexible Flame Retarded Fluro-Elastomer
