1100 Series Right Angle Heatshrink Shapes with Rib (VG/MIL Style)

  • 1100 SERIES RIGHT ANGLE HEATSHRINK SHAPES WITH RIB (VG/MIL STYLE)

            Right Angle Low Profile Shapes With Rib VG/MIL-Style

This style is typically used on airborne harness to achieve low profile, compact strain relief and mechanical protection.

VG shapes according to T07 add ‘P’ after Hellermann part number.

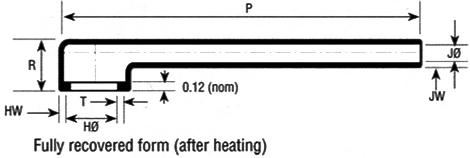

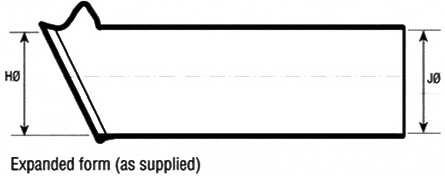

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#StyleExpanded (Min) HExpanded (Min) JP+/-10%Material
1121-1-JVG 0.87 0.87 2.76 Flexible Flame Retarded Polyolefin
1121-1-B7VG 0.87 0.87 2.76 Semi-Rigid Flame Retarded Polyolefin
1121-1-GVG 0.87 0.87 2.76 Fluid Resistant Flame Retarded Elastomer
1121-1-HVG 0.87 0.87 2.76 Flexible Zero-Hal Limited Fire Hazard Material
1121-1-LVG 0.87 0.87 2.76 Flexible Flame Retarded Fluro-Elastomer
1122-1-JVG 1.00 1.00 3.11 Flexible Flame Retarded Polyolefin
1122-1-B7VG 1.00 1.00 3.11 Semi-Rigid Flame Retarded Polyolefin
1122-1-GVG 1.00 1.00 3.11 Fluid Resistant Flame Retarded Elastomer
1122-1-HVG 1.00 1.00 3.11 Flexible Zero-Hal Limited Fire Hazard Material
1122-1-LVG 1.00 1.00 3.11 Flexible Flame Retarded Fluro-Elastomer
1123-1-JVG 1.14 1.14 3.50 Flexible Flame Retarded Polyolefin
1123-1-B7VG 1.14 1.14 3.50 Semi-Rigid Flame Retarded Polyolefin
1123-1-GVG 1.14 1.14 3.50 Fluid Resistant Flame Retarded Elastomer
1123-1-HVG 1.14 1.14 3.50 Flexible Zero-Hal Limited Fire Hazard Material
1123-1-LVG 1.14 1.14 3.50 Flexible Flame Retarded Fluro-Elastomer
1124-1-JVG 1.34 1.34 4.02 Flexible Flame Retarded Polyolefin
1124-1-B7VG 1.34 1.34 4.02 Semi-Rigid Flame Retarded Polyolefin
1124-1-GVG 1.34 1.34 4.02 Fluid Resistant Flame Retarded Elastomer
1124-1-HVG 1.34 1.34 4.02 Flexible Zero-Hal Limited Fire Hazard Material
1124-1-LVG 1.34 1.34 4.02 Flexible Flame Retarded Fluro-Elastomer
1125-1-JVG 1.46 1.46 4.25 Flexible Flame Retarded Polyolefin
1125-1-B7VG 1.46 1.46 4.25 Semi-Rigid Flame Retarded Polyolefin
1126-1-JVG 1.71 1.71 4.76 Flexible Flame Retarded Polyolefin
1126-1-B7VG 1.71 1.71 4.76 Semi-Rigid Flame Retarded Polyolefin
1126-1-GVG 1.71 1.71 4.76 Fluid Resistant Flame Retarded Elastomer
1126-1-HVG 1.71 1.71 4.76 Flexible Zero-Hal Limited Fire Hazard Material
1126-1-LVG 1.71 1.71 4.76 Flexible Flame Retarded Fluro-Elastomer
1127-1-JVG 1.97 1.97 5.20 Flexible Flame Retarded Polyolefin
1127-1-B7VG 1.97 1.97 5.20 Semi-Rigid Flame Retarded Polyolefin
1127-1-GVG 1.97 1.97 5.20 Fluid Resistant Flame Retarded Elastomer
1127-1-HVG 1.97 1.97 5.20 Flexible Zero-Hal Limited Fire Hazard Material
1127-1-LVG 1.97 1.97 5.20 Flexible Flame Retarded Fluro-Elastomer
1128-1-JVG 2.46 2.46 5.24 Flexible Flame Retarded Polyolefin
1128-1-B7VG 2.46 2.46 5.24 Semi-Rigid Flame Retarded Polyolefin
1128-1-GVG 2.46 2.46 5.24 Fluid Resistant Flame Retarded Elastomer
1128-1-HVG 2.46 2.46 5.24 Flexible Zero-Hal Limited Fire Hazard Material
1128-1-LVG 2.46 2.46 5.24 Flexible Flame Retarded Fluro-Elastomer
1129-1-JVG 2.72 2.72 5.39 Flexible Flame Retarded Polyolefin
1129-1-B7VG 2.72 2.72 5.39 Semi-Rigid Flame Retarded Polyolefin
1129-1-GVG 2.72 2.72 5.39 Fluid Resistant Flame Retarded Elastomer
1129-1-HVG 2.72 2.72 5.39 Flexible Zero-Hal Limited Fire Hazard Material
1129-1-LVG 2.72 2.72 5.39 Flexible Flame Retarded Fluro-Elastomer
1141-1-JVG 3.23 3.23 5.51 Flexible Flame Retarded Polyolefin
1141-1-B7VG 3.23 3.23 5.51 Semi-Rigid Flame Retarded Polyolefin
1121-4-JMIL 0.88 0.88 4.14 Flexible Flame Retarded Polyolefin
1121-4-B7MIL 0.88 0.88 4.14 Semi-Rigid Flame Retarded Polyolefin
1121-4-GMIL 0.88 0.88 4.14 Fluid Resistant Flame Retarded Elastomer
1121-4-HMIL 0.88 0.88 4.14 Flexible Zero-Hal Limited Fire Hazard Material
1121-4-LMIL 0.88 0.88 4.14 Flexible Flame Retarded Fluro-Elastomer
1122-4-JMIL 1.01 1.01 4.88 Flexible Flame Retarded Polyolefin
1122-4-B7MIL 1.01 1.01 4.88 Semi-Rigid Flame Retarded Polyolefin
1122-4-GMIL 1.01 1.01 4.88 Fluid Resistant Flame Retarded Elastomer
1122-4-HMIL 1.01 1.01 4.88 Flexible Zero-Hal Limited Fire Hazard Material
1122-4-LMIL 1.01 1.01 4.88 Flexible Flame Retarded Fluro-Elastomer
1123-4-JMIL 1.16 1.16 5.76 Flexible Flame Retarded Polyolefin
1123-4-B7MIL 1.16 1.16 5.76 Semi-Rigid Flame Retarded Polyolefin
1123-4-GMIL 1.16 1.16 5.76 Fluid Resistant Flame Retarded Elastomer
1123-4-HMIL 1.16 1.16 5.76 Flexible Zero-Hal Limited Fire Hazard Material
1123-4-LMIL 1.16 1.16 5.76 Flexible Flame Retarded Fluro-Elastomer
1124-4-JMIL 1.34 1.34 6.78 Flexible Flame Retarded Polyolefin
1124-4-B7MIL 1.34 1.34 6.78 Semi-Rigid Flame Retarded Polyolefin
1124-4-GMIL 1.34 1.34 6.78 Fluid Resistant Flame Retarded Elastomer
1124-4-HMIL 1.34 1.34 6.78 Flexible Zero-Hal Limited Fire Hazard Material
1124-4-LMIL 1.34 1.34 6.78 Flexible Flame Retarded Fluro-Elastomer
1125-4-JMIL 1.47 1.47 7.29 Flexible Flame Retarded Polyolefin
1125-4-B7MIL 1.47 1.47 7.29 Semi-Rigid Flame Retarded Polyolefin
1125-2-JMIL 1.62 1.62 3.23 Flexible Flame Retarded Polyolefin
1125-2-B7MIL 1.62 1.62 3.23 Semi-Rigid Flame Retarded Polyolefin
1125-2-GMIL 1.62 1.62 3.23 Fluid Resistant Flame Retarded Elastomer
1125-2-HMIL 1.62 1.62 3.23 Flexible Zero-Hal Limited Fire Hazard Material
1125-2-LMIL 1.62 1.62 3.23 Flexible Flame Retarded Fluro-Elastomer
1126-4-JMIL 1.72 1.72 8.41 Flexible Flame Retarded Polyolefin
1126-4-B7MIL 1.72 1.72 8.41 Semi-Rigid Flame Retarded Polyolefin
1126-4-GMIL 1.72 1.72 8.41 Fluid Resistant Flame Retarded Elastomer
1126-4-HMIL 1.72 1.72 8.41 Flexible Zero-Hal Limited Fire Hazard Material
1126-4-LMIL 1.72 1.72 8.41 Flexible Flame Retarded Fluro-Elastomer
1127-4-JMIL 1.97 1.97 8.84 Flexible Flame Retarded Polyolefin
1127-4-B7MIL 1.97 1.97 8.84 Semi-Rigid Flame Retarded Polyolefin
1127-4-GMIL 1.97 1.97 8.84 Fluid Resistant Flame Retarded Elastomer
1127-4-HMIL 1.97 1.97 8.84 Flexible Zero-Hal Limited Fire Hazard Material
1127-4-LMIL 1.97 1.97 8.84 Flexible Flame Retarded Fluro-Elastomer
1127-3-JMIL 1.97 1.97 2.56 Flexible Flame Retarded Polyolefin
1127-3-B7MIL 1.97 1.97 2.56 Semi-Rigid Flame Retarded Polyolefin
1127-3-GMIL 1.97 1.97 2.56 Fluid Resistant Flame Retarded Elastomer
1127-3-HMIL 1.97 1.97 2.56 Flexible Zero-Hal Limited Fire Hazard Material
1127-3-LMIL 1.97 1.97 2.56 Flexible Flame Retarded Fluro-Elastomer
1128-4-JMIL 2.47 2.47 8.95 Flexible Flame Retarded Polyolefin
1128-4-B7MIL 2.47 2.47 8.95 Semi-Rigid Flame Retarded Polyolefin
1129-4-JMIL 2.73 2.73 9.19 Flexible Flame Retarded Polyolefin
1129-4-B7MIL 2.73 2.73 9.19 Semi-Rigid Flame Retarded Polyolefin
1129-4-GMIL 2.73 2.73 9.19 Fluid Resistant Flame Retarded Elastomer
1129-4-HMIL 2.73 2.73 9.19 Flexible Zero-Hal Limited Fire Hazard Material
1129-4-LMIL 2.73 2.73 9.19 Flexible Flame Retarded Fluro-Elastomer
1141-4-JMIL 3.22 3.22 9.33 Flexible Flame Retarded Polyolefin
1141-4-B7MIL 3.22 3.22 9.33 Semi-Rigid Flame Retarded Polyolefin
1141-4-GMIL 3.22 3.22 9.33 Fluid Resistant Flame Retarded Elastomer
1141-4-HMIL 3.22 3.22 9.33 Flexible Zero-Hal Limited Fire Hazard Material
1141-4-LMIL 3.22 3.22 9.33 Flexible Flame Retarded Fluro-Elastomer
