  • 200 SERIES 2-WAY OUTLET HEATSHRINK SHAPES (VG STYLE)

2-Way Outlet Shapes VG-Style

This style provides cable sealing, stain relief and mechanical protection.

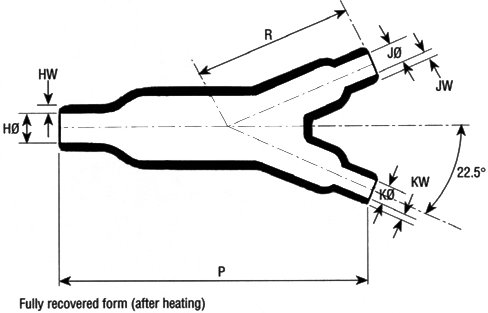

Dimensions apply to all materials unless otherwise indicated and are in inches.

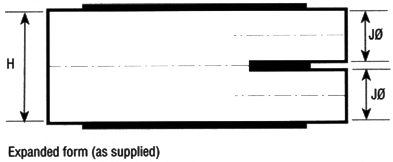

H Expanded is maximum width not diameter.

For VG shapes according to T09 add ‘P’ after Hellermann part number.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
227-1-J0.52 0.26 1.61 0.76 Flexible Flame Retarded Polyolefin
227-1-B70.52 0.26 1.61 0.76 Semi-Rigid Flame Retarded Polyolefin
227-1-G0.52 0.26 1.61 0.76 Fluid Resistant Flame Retarded Elastomer
227-1-H0.52 0.26 1.61 0.76 Flexible Zero-Hal Limited Fire Hazard Material
227-1-L0.52 0.26 1.61 0.76 Flexible Flame Retarded Fluro-Elastomer
206-1-J0.51 0.28 1.61 0.75 Flexible Flame Retarded Polyolefin
206-1-B70.51 0.28 1.61 0.75 Semi-Rigid Flame Retarded Polyolefin
206-1-G0.51 0.28 1.61 0.75 Fluid Resistant Flame Retarded Elastomer
206-1-H0.51 0.28 1.61 0.75 Flexible Zero-Hal Limited Fire Hazard Material
206-1-L0.51 0.28 1.61 0.75 Flexible Flame Retarded Fluro-Elastomer
213-1-J0.68 0.44 3.27 2.52 Flexible Flame Retarded Polyolefin
213-1-B70.68 0.44 3.27 2.52 Semi-Rigid Flame Retarded Polyolefin
213-1-G0.68 0.44 3.27 2.52 Fluid Resistant Flame Retarded Elastomer
213-1-H0.68 0.44 3.27 2.52 Flexible Zero-Hal Limited Fire Hazard Material
213-1-L0.68 0.44 3.27 2.52 Flexible Flame Retarded Fluro-Elastomer
213-2-J1.57 1.25 3.27 2.52 Flexible Flame Retarded Polyolefin
213-2-B71.57 1.25 3.27 2.52 Semi-Rigid Flame Retarded Polyolefin
213-2-G1.57 1.25 3.27 2.52 Fluid Resistant Flame Retarded Elastomer
213-2-H1.57 1.25 3.27 2.52 Flexible Zero-Hal Limited Fire Hazard Material
213-2-L1.57 1.25 3.27 2.52 Flexible Flame Retarded Fluro-Elastomer
212-1-J0.57 0.33 5.35 2.48 Flexible Flame Retarded Polyolefin
212-1-B70.57 0.33 5.35 2.48 Semi-Rigid Flame Retarded Polyolefin
212-1-G0.57 0.33 5.35 2.48 Fluid Resistant Flame Retarded Elastomer
212-1-H0.57 0.33 5.35 2.48 Flexible Zero-Hal Limited Fire Hazard Material
212-1-L0.57 0.33 5.35 2.48 Flexible Flame Retarded Fluro-Elastomer
203-1-J1.06 0.51 3.15 1.69 Flexible Flame Retarded Polyolefin
203-1-B71.06 0.51 3.15 1.69 Semi-Rigid Flame Retarded Polyolefin
203-1-G1.06 0.51 3.15 1.69 Fluid Resistant Flame Retarded Elastomer
203-1-H1.06 0.51 3.15 1.69 Flexible Zero-Hal Limited Fire Hazard Material
203-1-L1.06 0.51 3.15 1.69 Flexible Flame Retarded Fluro-Elastomer
204-1-J1.54 1.06 5.16 3.19 Flexible Flame Retarded Polyolefin
204-1-B71.54 1.06 5.16 3.19 Semi-Rigid Flame Retarded Polyolefin
204-1-G1.54 1.06 5.16 3.19 Fluid Resistant Flame Retarded Elastomer
204-1-H1.54 1.06 5.16 3.19 Flexible Zero-Hal Limited Fire Hazard Material
204-1-L1.54 1.06 5.16 3.19 Flexible Flame Retarded Fluro-Elastomer
211-1-J2.20 1.06 6.81 3.70 Flexible Flame Retarded Polyolefin
211-1-B72.20 1.06 6.81 3.70 Semi-Rigid Flame Retarded Polyolefin
211-1-G2.20 1.06 6.81 3.70 Fluid Resistant Flame Retarded Elastomer
211-1-H2.20 1.06 6.81 3.70 Flexible Zero-Hal Limited Fire Hazard Material
211-1-L2.20 1.06 6.81 3.70 Flexible Flame Retarded Fluro-Elastomer
