200 Series 2-way Outlet Heatshrink Shapes (In Line)

  • 200 SERIES 2-WAY OUTLET HEATSHRINK SHAPES (IN LINE)

2-Way Outlet Shapes In Line

This style provides cable sealing strain relief and mechanical protection. Ideal for power and signal applications.

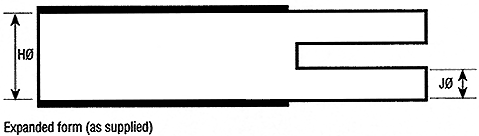

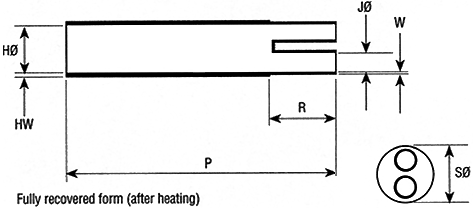

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
223-2-J1.30 0.69 3.70 1.18 Flexible Flame Retarded Polyolefin
223-2-B71.30 0.69 3.70 1.18 Semi-Rigid Flame Retarded Polyolefin
223-2-G1.30 0.69 3.70 1.18 Fluid Resistant Flame Retarded Elastomer
223-2-H1.30 0.69 3.70 1.18 Flexible Zero-Hal Limited Fire Hazard Material
223-2-L1.30 0.69 3.70 1.18 Flexible Flame Retarded Fluro-Elastomer
223-3-J1.30 0.69 2.36 1.18 Flexible Flame Retarded Polyolefin
223-3-B71.30 0.69 2.36 1.18 Semi-Rigid Flame Retarded Polyolefin
223-3-G1.30 0.69 2.36 1.18 Fluid Resistant Flame Retarded Elastomer
223-3-H1.30 0.69 2.36 1.18 Flexible Zero-Hal Limited Fire Hazard Material
223-3-L1.30 0.69 2.36 1.18 Flexible Flame Retarded Fluro-Elastomer
216-3-J0.83 0.35 3.01 0.79 Flexible Flame Retarded Polyolefin
216-3-B70.83 0.35 3.01 0.79 Semi-Rigid Flame Retarded Polyolefin
216-3-G0.83 0.35 3.01 0.79 Fluid Resistant Flame Retarded Elastomer
216-3-H0.83 0.35 3.01 0.79 Flexible Zero-Hal Limited Fire Hazard Material
216-3-L0.83 0.35 3.01 0.79 Flexible Flame Retarded Fluro-Elastomer
217-2-J1.22 0.59 3.92 1.12 Flexible Flame Retarded Polyolefin
217-2-B71.22 0.59 3.92 1.12 Semi-Rigid Flame Retarded Polyolefin
217-2-G1.22 0.59 3.92 1.12 Fluid Resistant Flame Retarded Elastomer
217-2-H1.22 0.59 3.92 1.12 Flexible Zero-Hal Limited Fire Hazard Material
217-2-L 1.22 0.59 3.92 1.12 Flexible Flame Retarded Fluro-Elastomer
218-2-J1.97 0.83 4.69 1.34 Flexible Flame Retarded Polyolefin
218-2-B71.97 0.83 4.69 1.34 Semi-Rigid Flame Retarded Polyolefin
218-2-G1.97 0.83 4.69 1.34 Fluid Resistant Flame Retarded Elastomer
218-2-H1.97 0.83 4.69 1.34 Flexible Zero-Hal Limited Fire Hazard Material
218-2-L1.97 0.83 4.69 1.34 Flexible Flame Retarded Fluro-Elastomer
220-1-J1.97 0.91 6.89 3.94 Flexible Flame Retarded Polyolefin
220-1-B71.97 0.91 6.89 3.94 Semi-Rigid Flame Retarded Polyolefin
220-1-G1.97 0.91 6.89 3.94 Fluid Resistant Flame Retarded Elastomer
220-1-H1.97 0.91 6.89 3.94 Flexible Zero-Hal Limited Fire Hazard Material
220-1-L1.97 0.91 6.89 3.94 Flexible Flame Retarded Fluro-Elastomer
219-2-J3.43 1.69 5.57 1.67 Flexible Flame Retarded Polyolefin
219-2-B73.43 1.69 5.57 1.67 Semi-Rigid Flame Retarded Polyolefin
219-2-G3.43 1.69 5.57 1.67 Fluid Resistant Flame Retarded Elastomer
219-2-H3.43 1.69 5.57 1.67 Flexible Zero-Hal Limited Fire Hazard Material
219-2-L3.43 1.69 5.57 1.67 Flexible Flame Retarded Fluro-Elastomer
221-1-J3.62 1.81 6.89 3.94 Flexible Flame Retarded Polyolefin
221-1-B73.62 1.81 6.89 3.94 Semi-Rigid Flame Retarded Polyolefin
221-1-G3.62 1.81 6.89 3.94 Fluid Resistant Flame Retarded Elastomer
221-1-H3.62 1.81 6.89 3.94 Flexible Zero-Hal Limited Fire Hazard Material
221-1-L3.62 1.81 6.89 3.94 Flexible Flame Retarded Fluro-Elastomer
