STJ Cables

Two Ordering Options

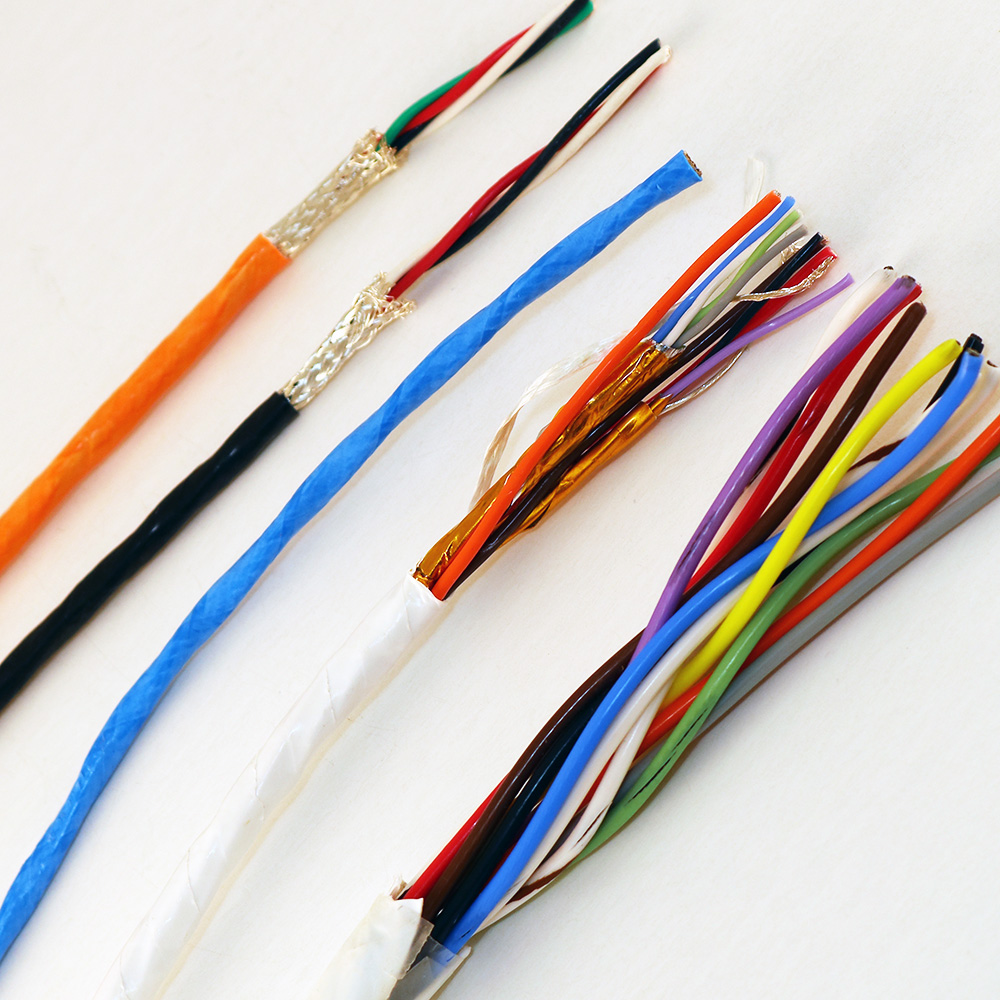

STJ Cables are general purpose cables for high temperature applications. These cables come with M16878/4 inner conductors, a silver coated copper braided shield, and a PTFE wrapped jacket. These cables are rated to 200C applications.

For a version of STJ cables with an extruded FEP jacket instead of a PTFE wrapped jacket, go to our STX cables >

Search our Product Wizard for available inventory.

Part Number	AWG Size	No. of Cond.	Conductor Stranding	Nom. O.D. of Cable (in)	Nom. Insul. Thick. (in)	Approx LBS/MFT
1 COND 32E7 STJ	32	1	7/40	0.067	0.010	4.00
2 COND 32E7 STJ	32	2	7/40	0.103	0.010	6.00
3 COND 32E7 STJ	32	3	7/40	0.107	0.010	9.00
4 COND 32E7 STJ	32	4	7/40	0.115	0.010	11.00
1 COND 30E7 STJ	30	1	7/38	0.069	0.010	4.00
2 COND 30E7 STJ	30	2	7/38	0.107	0.010	8.00
3 COND 30E7 STJ	30	3	7/38	0.112	0.010	10.00
4 COND 30E7 STJ	30	4	7/38	0.120	0.010	12.00
1 COND 28E7 STJ	28	1	7/36	0.072	0.010	5.00
2 COND 28E7 STJ	28	2	7/36	0.113	0.010	9.00
3 COND 28E7 STJ	28	3	7/36	0.118	0.010	11.00
4 COND 28E7 STJ	28	4	7/36	0.127	0.010	14.00
1 COND 26E19 STJ	26	1	19/38	0.076	0.010	0.00
2 COND 26E19 STJ	26	2	19/38	0.121	0.010	11.00
3 COND 26E19 STJ	26	3	19/38	0.127	0.010	0.00
4 COND 26E19 STJ	26	4	19/38	0.137	0.010	0.00
1 COND 24E19 STJ	24	1	19/36	0.085	0.010	7.00
2 COND 24E19 STJ	24	2	19/36	0.128	0.010	13.00
3 COND 24E19 STJ	24	3	19/36	0.134	0.010	16.00
4 COND 24E19 STJ	24	4	19/36	0.144	0.010	19.00
1 COND 22E19 STJ	22	1	19/34	0.090	0.010	10.00
2 COND 22E19 STJ	22	2	19/34	0.141	0.010	15.00
3 COND 22E19 STJ	22	3	19/34	0.143	0.010	20.00
4 COND 22E19 STJ	22	4	19/34	0.159	0.010	25.00
1 COND 20E19 STJ	20	1	19/32	0.098	0.010	11.00
2 COND 20E19 STJ	20	2	19/32	0.158	0.010	20.00
3 COND 20E19 STJ	20	3	19/32	0.164	0.010	27.00
4 COND 20E19 STJ	20	4	19/32	0.181	0.010	35.00
1 COND 18E19 STJ	18	1	19/30	0.109	0.010	15.00
2 COND 18E19 STJ	18	2	19/30	0.176	0.010	28.00
3 COND 18E19 STJ	18	3	19/30	0.188	0.010	38.00
4 COND 18E19 STJ	18	4	19/30	0.207	0.010	47.00
1 COND 16E19 STJ	16	1	19/29	0.117	0.010	17.00
2 COND 16E19 STJ	16	2	19/29	0.192	0.010	33.00
3 COND 16E19 STJ	16	3	19/29	0.202	0.010	46.00
5 COND 16E19 STJ	16	4	19/29	0.224	0.010	59.00
1 COND 14E19 STJ	14	1	19/27	0.131	0.010	15.00
2 COND 14E19 STJ	14	2	19/27	0.221	0.010	15.00
3 COND 14E19 STJ	14	3	19/27	0.237	0.010	15.00
4 COND 14E19 STJ	14	4	19/27	0.263	0.010	15.00
1 COND 12E19 STJ	12	1	19/25	0.151	0.010	15.00
2 COND 12E19 STJ	12	2	19/25	0.262	0.010	15.00
3 COND 12E19 STJ	12	3	19/25	0.277	0.010	114.40
4 COND 12E19 STJ	12	4	19/25	0.302	0.010	144.00
1 COND 10E37 STJ	10	1	37/26	0.185	0.010	51.00
2 COND 10E37 STJ	10	2	37/26	0.329	0.010	98.00
3 COND 10E37 STJ	10	3	37/26	0.357	0.010	140.00
4 COND 10E37 STJ	10	4	37/26	0.393	0.010	180.00
