MIL-W-81822/4 | SAE AS81822/4

Wire Wrap M81822

Two Ordering Options

Search Product Wizard

Call to Order – (800) 633-7210

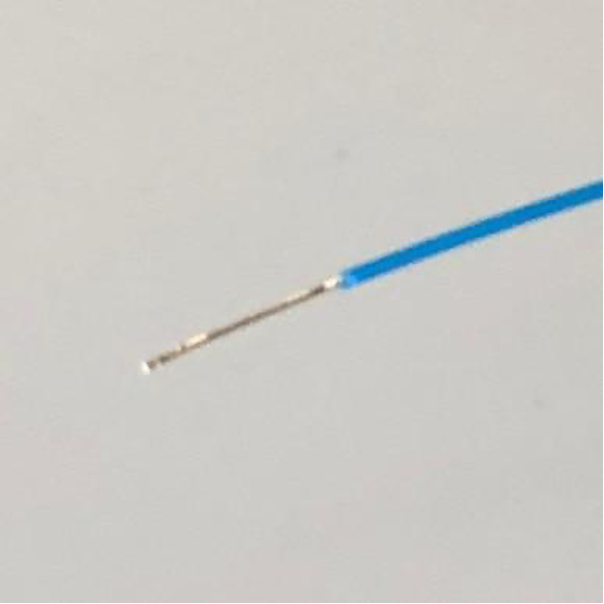

M81822 insulated electrical wire is designed for use in computer back panels and other electrical and data equipment. It is available in a selection of three different conductor types to meet your specific requirements:

Silver-plated ETP Copper
Silver-plated OHFC Copper
Silver-plated High Strength Copper Alloy

Part#	AWG Size	Approx lbs/MFT	Conductor Stranding	No. of Strands	Nom. Dia. of Cond.	Min. O.D. (in)	Max O.D. (in)	Max. Resistance @ 20˚C OHMS/MFT	Cond. Material	Insul. Material	Min. Temp	Max. Temp	Mil-Spec	SAE Spec	Voltage
M81822/4-A20	20	4.19	Solid	1	0.0320	0.0440	0.0480	10.4	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-A22	22	2.80	Solid	1	0.0253	0.0370	0.0410	16.8	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-A24	24	1.91	Solid	1	0.0201	0.0325	0.0355	26.5	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-A26	26	1.32	Solid	1	0.0159	0.0280	0.0310	42.7	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-A28	28	0.96	Solid	1	0.0126	0.0250	0.0280	68.0	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-A30	30	0.55	Solid	1	0.0100	0.0159	0.0205	108	Silver-Plated Copper	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B20	20	4.19	Solid	1	0.0320	0.0440	0.0480	10.4	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B22	22	2.80	Solid	1	0.0253	0.0370	0.0410	16.8	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B24	24	1.91	Solid	1	0.0201	0.0325	0.0355	26.5	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B26	26	1.32	Solid	1	0.0159	0.0280	0.0310	42.7	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B28	28	0.96	Solid	1	0.0126	0.0250	0.0280	68.0	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-B30	30	0.55	Solid	1	0.0100	0.0185	0.205	108	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C20	20	4.19	Solid	1	0.0320	0.0440	0.0480	12.2	Silver-Plated Alloy	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C22	22	2.80	Solid	1	0.0253	0.0370	0.0410	19.7	Silver-Plated Alloy	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C24	24	1.91	Solid	1	0.0201	0.0325	0.0355	31.0	Silver-Plated Alloy	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C26	26	1.32	Solid	1	0.0159	0.0280	0.0310	50.4	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C28	28	0.96	Solid	1	0.0126	0.0250	0.0280	79.4	Silver-Plated Oxygen Free	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
M81822/4-C30	30	0.55	Solid	1	0.0100	0.0185	0.0205	126	Silver-Plated Alloy	Polytetrafluoroethylene (PTFE) w/ Polyimide (PI) Topcoat	-55°C	200°C	M81822/4	AS81822/4	300
