  • 2100 SERIES CONNECTOR COVER FOR MIN-D SERIES (SIDE ENTRY)

Connector Cover for MIN-D Series With 90º Entry

This style provides strain relief and mechanical protection.

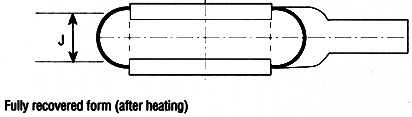

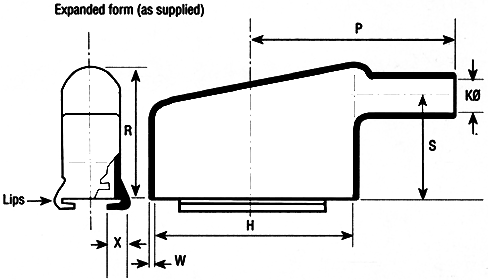

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#TypeExpanded (Min) HExpanded (Min) JExpanded (Min) KMaterial
2101-1-JWith Lips 0.80 0.42 0.31 Flexible Flame Retarded Polyolefin
2101-1-B7With Lips 0.80 0.42 0.31 Semi-Rigid Flame Retarded Polyolefin
2101-1-GWith Lips 0.80 0.42 0.31 Fluid Resistant Flame Retarded Elastomer
2101-1-HWith Lips 0.80 0.42 0.31 Flexible Zero-Hal Limited Fire Hazard Material
2101-1-LWith Lips 0.80 0.42 0.31 Flexible Flame Retarded Fluro-Elastomer
2101-2-JWith Lips 0.63 0.63 0.63 Flexible Flame Retarded Polyolefin
2101-2-B7With Lips 0.63 0.63 0.63 Semi-Rigid Flame Retarded Polyolefin
2101-2-GWith Lips 0.63 0.63 0.63 Fluid Resistant Flame Retarded Elastomer
2101-2-HWith Lips 0.63 0.63 0.63 Flexible Zero-Hal Limited Fire Hazard Material
2101-2-LWith Lips 0.63 0.63 0.63 Flexible Flame Retarded Fluro-Elastomer
2102-1-JWith Lips 1.11 0.42 0.40 Flexible Flame Retarded Polyolefin
2102-1-B7With Lips 1.11 0.42 0.40 Semi-Rigid Flame Retarded Polyolefin
2102-1-GWith Lips 1.11 0.42 0.40 Fluid Resistant Flame Retarded Elastomer
2102-1-HWith Lips 1.11 0.42 0.40 Flexible Zero-Hal Limited Fire Hazard Material
2102-1-LWith Lips 1.11 0.42 0.40 Flexible Flame Retarded Fluro-Elastomer
2102-2-JWith Lips 0.75 0.75 0.75 Flexible Flame Retarded Polyolefin
2102-2-B7With Lips 0.75 0.75 0.75 Semi-Rigid Flame Retarded Polyolefin
2102-2-GWith Lips 0.75 0.75 0.75 Fluid Resistant Flame Retarded Elastomer
2102-2-HWith Lips 0.75 0.75 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2102-2-LWith Lips 0.75 0.75 0.75 Flexible Flame Retarded Fluro-Elastomer
2103-1-JWith Lips 1.66 0.42 0.55 Flexible Flame Retarded Polyolefin
2103-1-B7With Lips 1.66 0.42 0.55 Semi-Rigid Flame Retarded Polyolefin
2103-1-GWith Lips 1.66 0.42 0.55 Fluid Resistant Flame Retarded Elastomer
2103-1-HWith Lips 1.66 0.42 0.55 Flexible Zero-Hal Limited Fire Hazard Material
2103-1-LWith Lips 1.66 0.42 0.55 Flexible Flame Retarded Fluro-Elastomer
2103-2-JWith Lips 1.15 1.15 1.15 Flexible Flame Retarded Polyolefin
2103-2-B7With Lips 1.15 1.15 1.15 Semi-Rigid Flame Retarded Polyolefin
2103-2-GWith Lips 1.15 1.15 1.15 Fluid Resistant Flame Retarded Elastomer
2103-2-HWith Lips 1.15 1.15 1.15 Flexible Zero-Hal Limited Fire Hazard Material
2103-2-LWith Lips 1.15 1.15 1.15 Flexible Flame Retarded Fluro-Elastomer
2104-1-JWith Lips 2.31 0.42 0.68 Flexible Flame Retarded Polyolefin
2104-1-B7With Lips 2.31 0.42 0.68 Semi-Rigid Flame Retarded Polyolefin
2104-1-GWith Lips 2.31 0.42 0.68 Fluid Resistant Flame Retarded Elastomer
2104-1-HWith Lips 2.31 0.42 0.68 Flexible Zero-Hal Limited Fire Hazard Material
2104-1-LWith Lips 2.31 0.42 0.68 Flexible Flame Retarded Fluro-Elastomer
2105-1-JWith Lips 2.28 0.54 0.75 Flexible Flame Retarded Polyolefin
2105-1-B7With Lips 2.28 0.54 0.75 Semi-Rigid Flame Retarded Polyolefin
2105-1-GWith Lips 2.28 0.54 0.75 Fluid Resistant Flame Retarded Elastomer
2105-1-HWith Lips 2.28 0.54 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2105-1-LWith Lips 2.28 0.54 0.75 Flexible Flame Retarded Fluro-Elastomer
2105-2-JWith Lips 1.48 1.48 1.48 Flexible Flame Retarded Polyolefin
2105-2-B7With Lips 1.48 1.48 1.48 Semi-Rigid Flame Retarded Polyolefin
2105-2-GWith Lips 1.48 1.48 1.48 Fluid Resistant Flame Retarded Elastomer
2105-2-HWith Lips 1.48 1.48 1.48 Flexible Zero-Hal Limited Fire Hazard Material
2105-2-LWith Lips 1.48 1.48 1.48 Flexible Flame Retarded Fluro-Elastomer
2103-3-JWithout Lips 1.69 0.49 0.55 Flexible Flame Retarded Polyolefin
2103-3-B7Without Lips 1.69 0.49 0.55 Semi-Rigid Flame Retarded Polyolefin
2103-3-GWithout Lips 1.69 0.49 0.55 Fluid Resistant Flame Retarded Elastomer
2103-3-HWithout Lips 1.69 0.49 0.55 Flexible Zero-Hal Limited Fire Hazard Material
2103-3-LWithout Lips 1.69 0.49 0.55 Flexible Flame Retarded Fluro-Elastomer
2105-3-JWithout Lips 2.26 0.60 0.75 Flexible Flame Retarded Polyolefin
2105-3-B7Without Lips 2.26 0.60 0.75 Semi-Rigid Flame Retarded Polyolefin
2105-3-GWithout Lips 2.26 0.60 0.75 Fluid Resistant Flame Retarded Elastomer
2105-3-HWithout Lips 2.26 0.60 0.75 Flexible Zero-Hal Limited Fire Hazard Material
2105-3-LWithout Lips 2.26 0.60 0.75 Flexible Flame Retarded Fluro-Elastomer
1819-42-G60 º 1.69 1.69 2.17 Fluid Resistant Flame Retarded Elastomer
1819-42-H60 º 1.69 1.69 2.17 Flexible Zero-Hal Limited Fire Hazard Material
1819-42-L60 º 1.69 1.69 2.17 Flexible Flame Retarded Fluro-Elastomer
