1100 SERIES RIGHT ANGLE HEATSHRINK SHAPES WITH RIB (MIL STYLE)

Two Ordering Options

Search Product Wizard
Call to Order – (800) 633-7210

1100 SERIES RIGHT ANGLE HEATSHRINK SHAPES WITH RIB (MIL STYLE)

Right Angle Shapes Thick Wall With Rib MIL-Style

This style provides strain relief for harness systems when used in conjunction with a circular grooved adaptor.

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

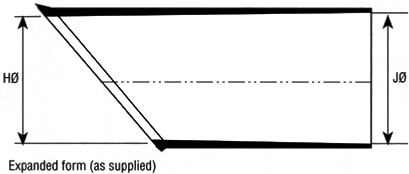

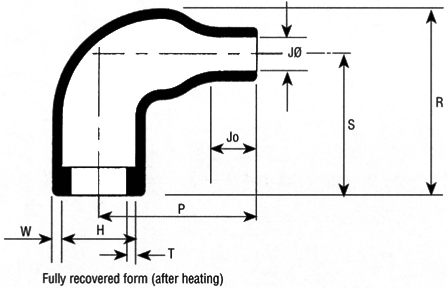

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
1181-4-J0.47 0.24 0.75 0.51 Flexible Flame Retarded Polyolefin
1181-4-B70.47 0.24 0.75 0.51 Semi-Rigid Flame Retarded Polyolefin
1181-4-G0.47 0.24 0.75 0.51 Fluid Resistant Flame Retarded Elastomer
1181-4-H0.47 0.24 0.75 0.51 Flexible Zero-Hal Limited Fire Hazard Material
1181-4-L0.47 0.24 0.75 0.51 Flexible Flame Retarded Fluro-Elastomer
1108-4-J0.65 0.65 0.68 0.79 Flexible Flame Retarded Polyolefin
1108-4-B70.65 0.65 0.68 0.79 Semi-Rigid Flame Retarded Polyolefin
1108-4-G0.65 0.65 0.68 0.79 Fluid Resistant Flame Retarded Elastomer
1108-4-H0.65 0.65 0.68 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1108-4-L0.65 0.65 0.68 0.79 Flexible Flame Retarded Fluro-Elastomer
1106-4-J0.92 0.92 0.80 0.90 Flexible Flame Retarded Polyolefin
1106-4-B70.92 0.92 0.80 0.90 Semi-Rigid Flame Retarded Polyolefin
1106-4-G0.92 0.92 0.80 0.90 Fluid Resistant Flame Retarded Elastomer
1106-4-H0.92 0.92 0.80 0.90 Flexible Zero-Hal Limited Fire Hazard Material
1106-4-L0.92 0.92 0.80 0.90 Flexible Flame Retarded Fluro-Elastomer
1107-4-J1.12 1.12 1.17 1.12 Flexible Flame Retarded Polyolefin
1107-4-B71.12 1.12 1.17 1.12 Semi-Rigid Flame Retarded Polyolefin
1107-4-G1.12 1.12 1.17 1.12 Fluid Resistant Flame Retarded Elastomer
1107-4-H1.12 1.12 1.17 1.12 Flexible Zero-Hal Limited Fire Hazard Material
1107-4-L1.12 1.12 1.17 1.12 Flexible Flame Retarded Fluro-Elastomer
1104-4-J1.22 1.22 1.40 1.20 Flexible Flame Retarded Polyolefin
1104-4-B71.22 1.22 1.40 1.20 Semi-Rigid Flame Retarded Polyolefin
1104-4-G1.22 1.22 1.40 1.20 Fluid Resistant Flame Retarded Elastomer
1104-4-H1.22 1.22 1.40 1.20 Flexible Zero-Hal Limited Fire Hazard Material
1104-4-L1.22 1.22 1.40 1.20 Flexible Flame Retarded Fluro-Elastomer
1181-4-J0.47 0.24 0.75 0.51 Flexible Flame Retarded Polyolefin
1181-4-B70.47 0.24 0.75 0.51 Semi-Rigid Flame Retarded Polyolefin
1181-4-G0.47 0.24 0.75 0.51 Fluid Resistant Flame Retarded Elastomer
1181-4-H0.47 0.24 0.75 0.51 Flexible Zero-Hal Limited Fire Hazard Material
1181-4-L0.47 0.24 0.75 0.51 Flexible Flame Retarded Fluro-Elastomer
1108-4-J0.65 0.65 0.68 0.79 Flexible Flame Retarded Polyolefin
1108-4-B70.65 0.65 0.68 0.79 Semi-Rigid Flame Retarded Polyolefin
1108-4-G0.65 0.65 0.68 0.79 Fluid Resistant Flame Retarded Elastomer
1108-4-H0.65 0.65 0.68 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1108-4-L0.65 0.65 0.68 0.79 Flexible Flame Retarded Fluro-Elastomer
1106-4-J0.92 0.92 0.80 0.90 Flexible Flame Retarded Polyolefin
1106-4-B70.92 0.92 0.80 0.90 Semi-Rigid Flame Retarded Polyolefin
1106-4-G0.92 0.92 0.80 0.90 Fluid Resistant Flame Retarded Elastomer
1106-4-H0.92 0.92 0.80 0.90 Flexible Zero-Hal Limited Fire Hazard Material
1106-4-L0.92 0.92 0.80 0.90 Flexible Flame Retarded Fluro-Elastomer
1107-4-J1.12 1.12 1.17 1.12 Flexible Flame Retarded Polyolefin
1107-4-B71.12 1.12 1.17 1.12 Semi-Rigid Flame Retarded Polyolefin
1107-4-G1.12 1.12 1.17 1.12 Fluid Resistant Flame Retarded Elastomer
1107-4-H1.12 1.12 1.17 1.12 Flexible Zero-Hal Limited Fire Hazard Material
1107-4-L1.12 1.12 1.17 1.12 Flexible Flame Retarded Fluro-Elastomer
1104-4-J1.22 1.22 1.40 1.20 Flexible Flame Retarded Polyolefin
1104-4-B71.22 1.22 1.40 1.20 Semi-Rigid Flame Retarded Polyolefin
1104-4-G1.22 1.22 1.40 1.20 Fluid Resistant Flame Retarded Elastomer
1104-4-H1.22 1.22 1.40 1.20 Flexible Zero-Hal Limited Fire Hazard Material
1104-4-L 1.22 1.22 1.40 1.20 Flexible Flame Retarded Fluro-Elastomer
1181-4-J0.47 0.24 0.75 0.51 Flexible Flame Retarded Polyolefin
1181-4-B70.47 0.24 0.75 0.51 Semi-Rigid Flame Retarded Polyolefin
1181-4-G0.47 0.24 0.75 0.51 Fluid Resistant Flame Retarded Elastomer
1181-4-H0.47 0.24 0.75 0.51 Flexible Zero-Hal Limited Fire Hazard Material
1181-4-L0.47 0.24 0.75 0.51 Flexible Flame Retarded Fluro-Elastomer
1108-4-J0.65 0.65 0.68 0.79 Flexible Flame Retarded Polyolefin
1108-4-B70.65 0.65 0.68 0.79 Semi-Rigid Flame Retarded Polyolefin
1108-4-G0.65 0.65 0.68 0.79 Fluid Resistant Flame Retarded Elastomer
1108-4-H0.65 0.65 0.68 0.79 Flexible Zero-Hal Limited Fire Hazard Material
1108-4-L0.65 0.65 0.68 0.79 Flexible Flame Retarded Fluro-Elastomer
1106-4-J0.92 0.92 0.80 0.90 Flexible Flame Retarded Polyolefin
1106-4-B70.92 0.92 0.80 0.90 Semi-Rigid Flame Retarded Polyolefin
1103-4-J1.42 1.42 1.70 1.40 Flexible Flame Retarded Polyolefin
1103-4-B71.42 1.42 1.70 1.40 Semi-Rigid Flame Retarded Polyolefin
1103-4-G1.42 1.42 1.70 1.40 Fluid Resistant Flame Retarded Elastomer
1103-4-H1.42 1.42 1.70 1.40 Flexible Zero-Hal Limited Fire Hazard Material
1103-4-L 1.42 1.42 1.70 1.40 Flexible Flame Retarded Fluro-Elastomer
1101-4-J1.68 1.68 2.10 1.70 Flexible Flame Retarded Polyolefin
1101-4-B71.68 1.68 2.10 1.70 Semi-Rigid Flame Retarded Polyolefin
1101-4-G1.68 1.68 2.10 1.70 Fluid Resistant Flame Retarded Elastomer
1101-4-H1.68 1.68 2.10 1.70 Flexible Zero-Hal Limited Fire Hazard Material
1101-4-L1.68 1.68 2.10 1.70 Flexible Flame Retarded Fluro-Elastomer
1105-4-J 2.04 2.04 3.10 2.10 Flexible Flame Retarded Polyolefin
1105-4-B72.04 2.04 3.10 2.10 Semi-Rigid Flame Retarded Polyolefin
1105-4-G2.04 2.04 3.10 2.10 Fluid Resistant Flame Retarded Elastomer
1105-4-H2.04 2.04 3.10 2.10 Flexible Zero-Hal Limited Fire Hazard Material
1105-4-L2.04 2.04 3.10 2.10 Flexible Flame Retarded Fluro-Elastomer
1109-4-J2.60 2.60 3.84 2.60 Flexible Flame Retarded Polyolefin
1109-4-B72.60 2.60 3.84 2.60 Semi-Rigid Flame Retarded Polyolefin
1109-4-G2.60 2.60 3.84 2.60 Fluid Resistant Flame Retarded Elastomer
1109-4-H2.60 2.60 3.84 2.60 Flexible Zero-Hal Limited Fire Hazard Material
1109-4-L2.60 2.60 3.84 2.60 Flexible Flame Retarded Fluro-Elastomer
1110-4-J3.20 2.20 5.03 3.12 Flexible Flame Retarded Polyolefin
1110-4-B73.20 2.20 5.03 3.12 Semi-Rigid Flame Retarded Polyolefin
1110-4-G3.20 2.20 5.03 3.12 Fluid Resistant Flame Retarded Elastomer
1110-4-H3.20 2.20 5.03 3.12 Flexible Zero-Hal Limited Fire Hazard Material
1110-4-L3.20 2.20 5.03 3.12 Flexible Flame Retarded Fluro-Elastomer
